AirCore TAF35-C (Firefighting robot)

AirCore TAF35-C
AirCore TAF35-C

Technical data

Speed0 - 9 km/h
Weightca. 4.200 kg (depending on options)
Engine Power53 kW (71 HP) watercooled, Stage V
Fuel Tank52 l Diesel
Autonomy at full loadca. 5 h
Gradeability & Side Slopemax. 58 % (30°); 27 % (15°)
Tractive Force3,8 t (3,800 daN)
Water flow

Gradually adjustable

  • Water mist up to 1,500 l/min
  • High water flow rate up to 4,000 l/min
Throwing Distances
  • up to 60 m (with fine water mist)
  • up to 93 m (with monitor)
Airflow, continuously adjustable220.000 m³/h
Dimensions (L x W x H)3.200 x 1.650 x 1.990 mm
AirCore TAF35-C
AirCore TAF35-C

The Magirus AirCore TAF firefighting robot combines highly efficient water mist suppression technology with the agility and multifunctionality of a compact tracked chassis. It possesses a wide range of capabilities that can be remotely controlled by an operator from a safe zone. In addition to firefighting, cooling, and ventilation, the TAF robot’s features include transporting equipment, clearing obstacles, and recovering vehicles. Furthermore, the generated water mist—with its slowly settling droplets—can effectively bind airborne contaminants.



The TAF firefighting robot thus serves as the ultimate multi-tool for fire service operations and the ideal partner for demanding emergency scenarios.

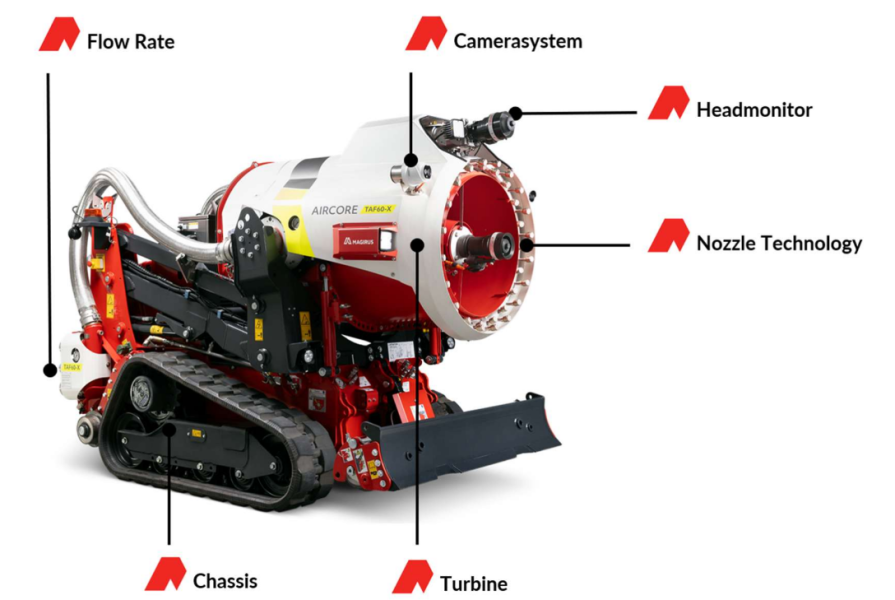

Special features
