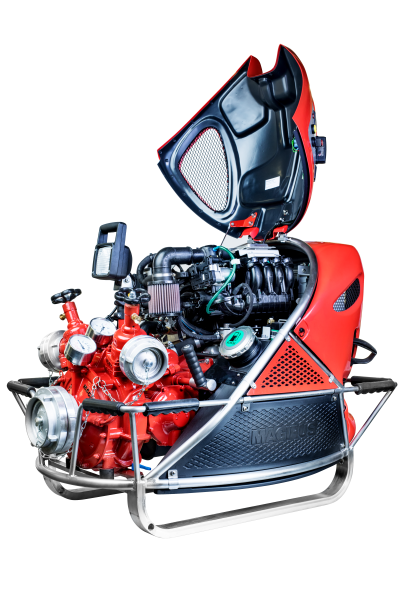

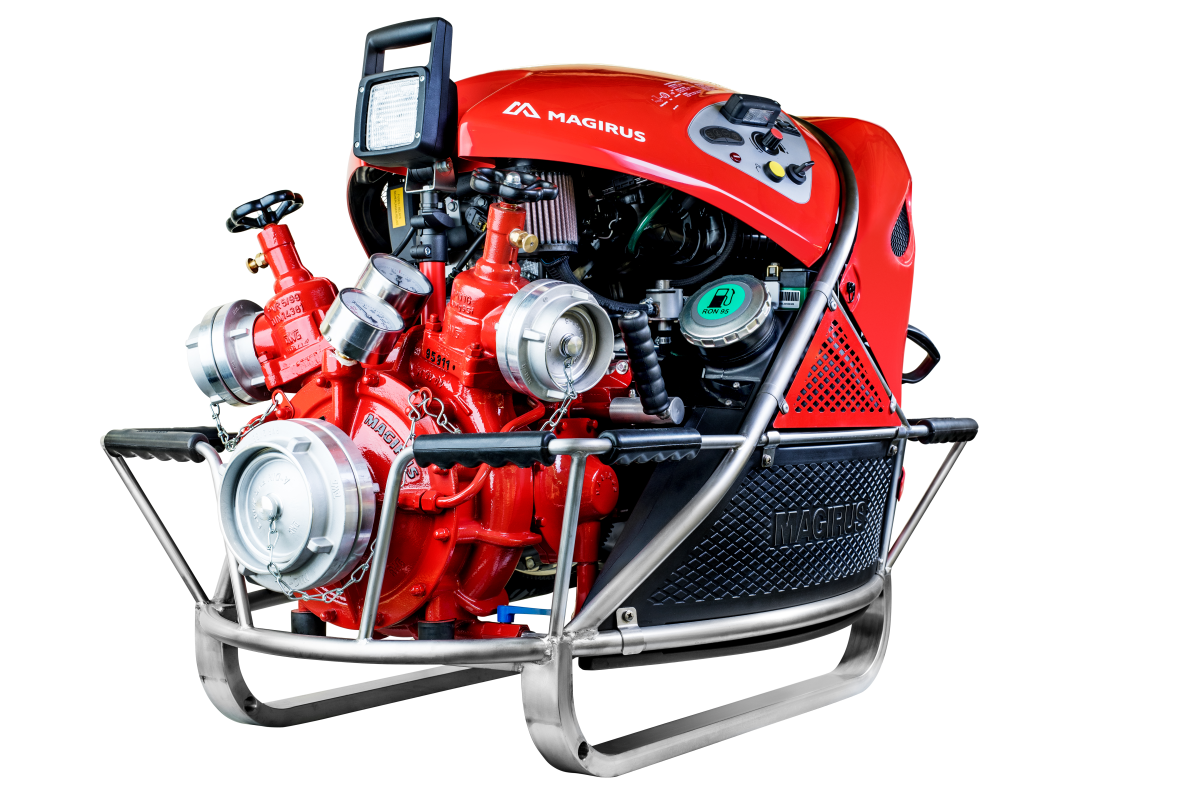

FIRE 1000 (Portable fire pump)
Technical data
| Pump capacity | - |
| Venting device | Magirus PRIMATIC Automatic Membrane-Type Air Bleed Pump |
| Engine |
|
| Fuel tank contents | 15 l, petrol |
| Weight | 192,5 kg (ready for use) |
| Dimensions (L x W x H) | 1.092 x 749 x 842 mm |
The Magirus FIRE 1000 portable fire pump combines compact dimensions, maximum performance, and the highest reliability into a powerful all-in-one package. At the heart of the portable fire pump is an efficient, two-stage Magirus centrifugal pump. This pump draws its power from a powerful 4-cylinder inline engine from FPT, which ensures that emergency responders are reliably supplied with water even when pumping over long distances. With a DIN-compliant base frame, the FIRE 1000 can be mounted in any fire truck and is a reliable companion at every scene—from traditional firefighting to large-scale disaster response.
Practical features
- 3 m suction height 1.350 l/min at 10 bar
- 7,5 m suction height 750 l/min at 10 bar
Additional benefits
- Maximum performance in permanent operation with up to 8 m suction height for maximum safety during operation
- Stable and light stainless steel frame suitable for carrying harness attachments e.g. for helicopter transport
- 8 x ergonomic hand grips on all sides allowing a safe and quick transport
- Anchoring bores in frame in line with EN standards ensure fire pump fixation, no matter on which vehicle type
- Dimensions according to EN 14466 norm
- Electric starter as standard, including manual start device
- Intuitive HMI panel with all functions in one position for easy operation
