Mobile Generator
Technical data
| Rated Power | 14 kVa |
| Frequency | 50 Hz |
| Engine type | B&S EFI |
| Engine power | 23 PS |
| Noise level | 75 dBA at 7m distance |
| Fuel tank capacity | 17 l |
| Weight | 141 kg (without fueling) |
| Powert Sockets | 3x Schuko 230V, IP 68, 16A 2x CEE 400V, IP 67, 16A 1x IT-TN IP67, 16A |
| Starter battery | Lithium-Ion |
| Interfaces | USB-A, USB-C, FireCan |
| Exhaust system | Dual-side |
| Operating mode | ECO-mode |
| Safety features | Electrical isolation, insulation monitoring |
| Standards | DIN 14685-1, IEC 61557-8, VDE 0413-8 |

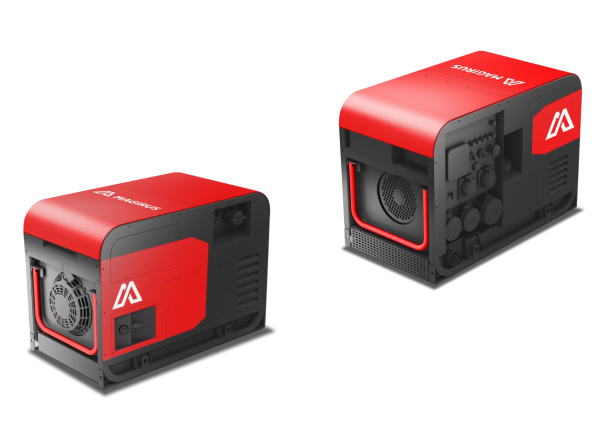

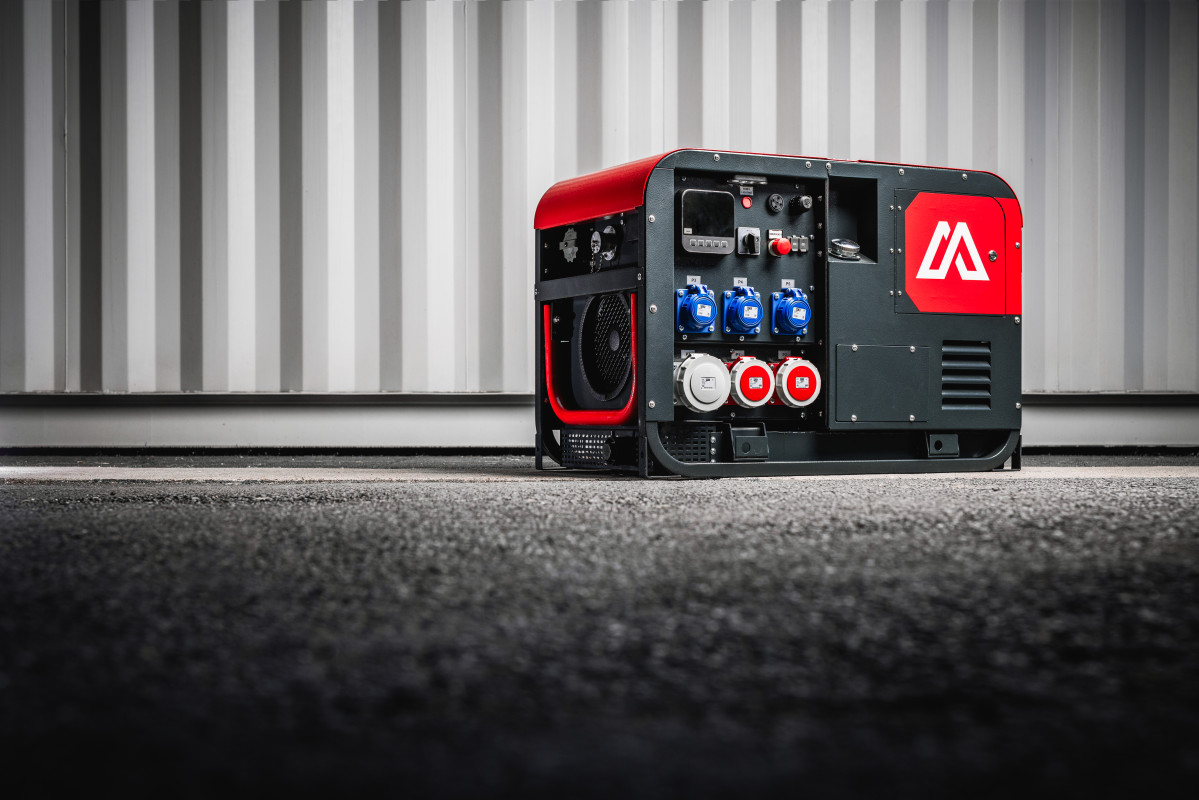

The Magirus generator is a mobile power unit designed for the supply of electrical energy in operational and support scenarios. It ensures reliable power supply for equipment, lighting systems, and operational tools, particularly in off-grid environments or during power outages.
The unit is engineered for demanding conditions and combines high-performance power generation, a rugged design, and user-oriented operation. The integrated control system enables easy monitoring and adjustment of operating parameters.
Typical applications include firefighting, civil protection, technical rescue, construction, maintenance, and industrial use.
Practical features
- ECO mode to reduce power consumption and noise
- Carrying handles are located on all sides, allowing the unit to be carried by more than four people.
- Intuitive user interface with LED status indicator
- Integrated work lighting for the control panel
- Emergency stop button for immediate shutdown
Additional advantages
- The customer can easily switch the exhaust route from front to rear using a cover
- Operating status indicated by an LED strip (traffic light system)
- Easy access for maintenance and inspection
