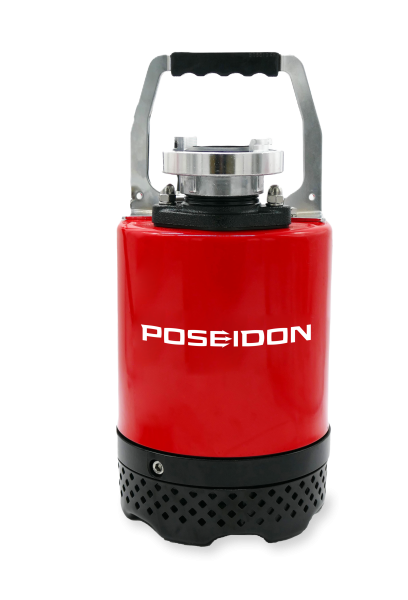

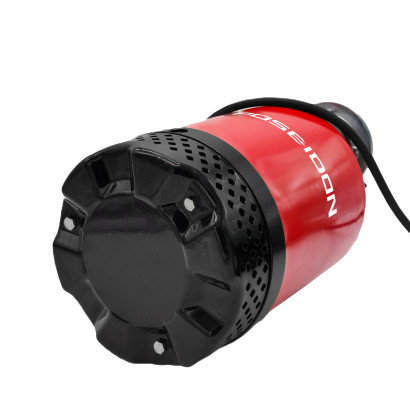

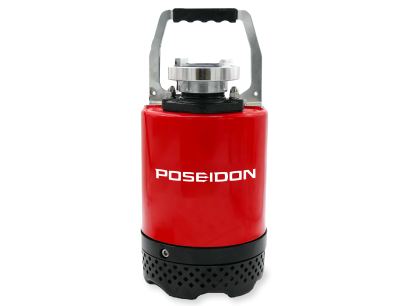

POSEIDON SHP 240 (Sewage handling pump)
Technical data
| Supply Voltage | 230 V / 1 ~ / 50 Hz |
| Power Output | 0,37 kW |
| Nominal current | 3 A |
| Connection cable | H07RN-F 3G1,5 Schuko IP 68 - 10 m |
| Protection | Pump IP68 |
| Discharge connection | G 2“ AG |
| Particle screen (Ø) | 8 mm |
| Weight (with cable) | 11,3 kg |
| Dimensions (Ø x H) | 188 x 410 mm |
| Flow rate | max. 225 l/min |
| Discharge height | max. 10,5 m |
The Magirus Poseidon SHP 240 sewage handling pump is specially designed for demanding use by fire departments. Thanks to their double shell cooling these pumps are perfect for continuous slurping and submersible operation. This feature ensures that the pumps work reliably even under extreme conditions without overheating or losing performance.
Practical features
- Movable cable strain relief to prevent cable tension and protect the cable entry
- Increased pump lifetime thanks to robust materials and design
- The pumping of contaminated water with foreign bodies such as sludge and sand is possible up to a grain size of 8 mm
Additional benefits
- The double-shell cooling system allows for continuous surface and slurping operation
- Maximum safety against motor damage thanks to thermal motor protection
- Easy inspection and maintenance without time-consuming disassembly
