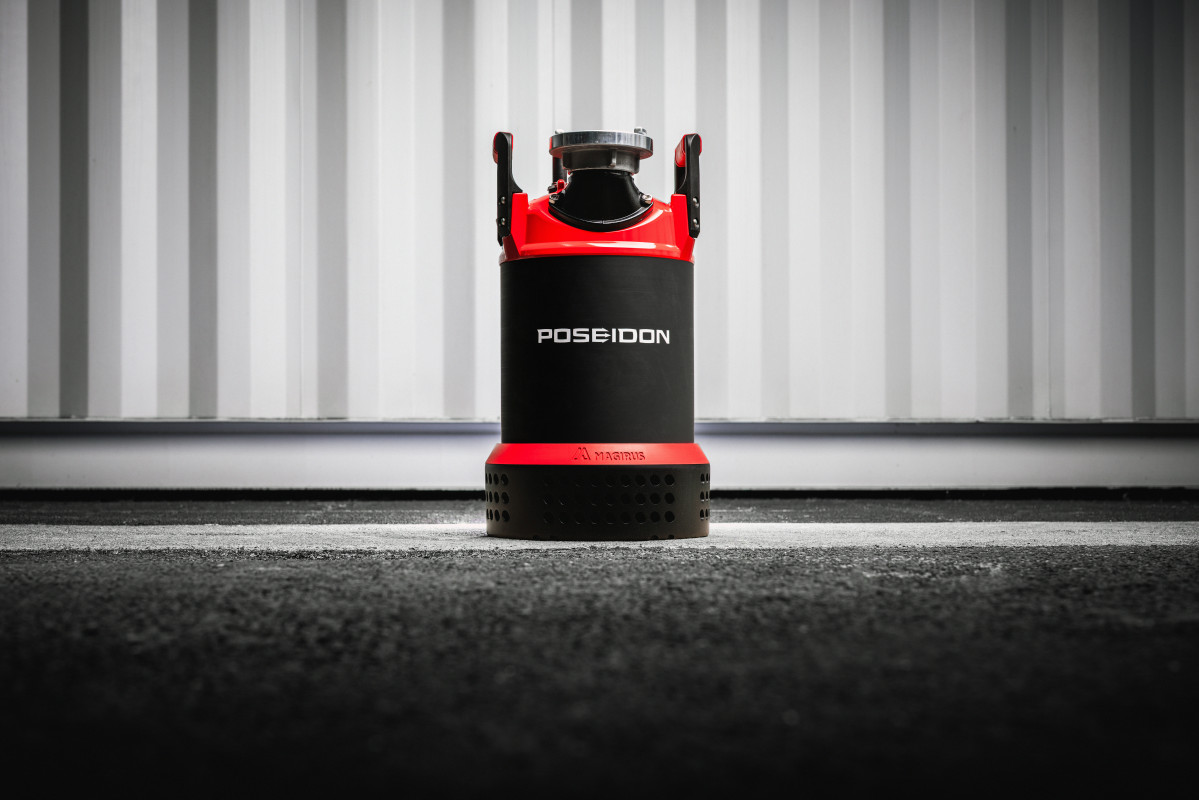

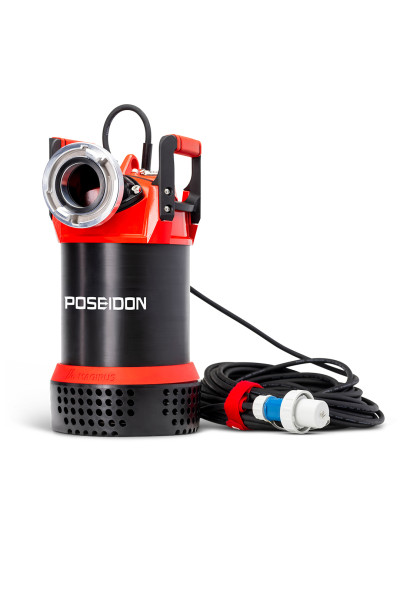

POSEIDON TP 4/1 (Submersible pump)

POSEIDON TP 4/1
POSEIDON TP 4/1

Technical data

Supply Voltage230 V / 1 ~ / 50 Hz
Power Output1,3 kW
Power Input1,8 kVa
Nominal current8,1 A
Connection cableH07RN-F 3G1,5 Schuko IP 68 - 20 m
ProtectionPump IP68
Discharge connectionG 2 ½“ AG
Particle screen (Ø)8 mm
Weight (with cable)23 kg
Dimensions (Ø x H)256 x 462 mm
Nominal delivery rate420 l/min at 1 bar (10 m discharge height)
Performance data (flow rate)

750 l/min - 0 bar

600 l/min - 0,5 bar

420 l/min - 1 bar

250 l/min - 1,4 bar

0 l/min - 1,6 bar

Immersion depth20 m
pH-value of pumped medium5-8
Ambient temperature-15°C to +40°C
Temperature pumped mediummax. +40°C, briefly up to +60°C

The new Magirus Poseidon TP 4/1 in accordance with DIN 14425 is a powerful pump that has been especially developed for use by fire brigades in emergency situations. It guarantees rapid and effective support for the firefighters in situations such as high water and flooding, where fast and efficient pumping is crucial, and under the most difficult conditions. With a maximum flow rate of up to 750 l/min, the pump offers the ability to move large volumes of water in a short time, which is a great advantage in extreme situations.

Practical features

  • Eyelet for attaching a multi-purpose line for lowering or securing the pump
  • Movable cable strain relief to prevent cable tension and protect the cable entry
  • Increased service life of the pump due to robust materials and design
  • The pumping of contaminated water with foreign bodies such as sludge and sand is possible up to a grain size of 8 mm
POSEIDON TP 4/1
POSEIDON TP 4/1

Additional advantages
