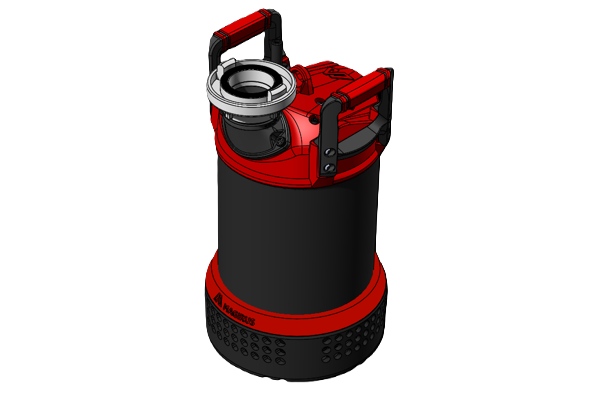

POSEIDON TP 8/1 (Submersible pump)
Technical data
| Supply Voltage | 400 V |
| Power Output | - |
| Power Input | 4,2 kVA |
| Nominal current | 6 A |
| Connection cable | - |
| Protection | - |
| Discharge connection | G 2 ½“ AG |
| Particle screen (Ø) | 11 mm |
| Weight (with cable) | 32 kg |
| Dimensions (Ø x H) | 284 x 507 mm |
| Flow rate | max. 1.400 l/min |
The Magirus Poseidon TP 8/1 according to DIN 14425 is a particularly powerful and robust submersible pump designed for professional use by fire brigades during major incidents and disaster response operations. It reliably supports emergency services in extreme situations such as flooding, heavy rainfall events, or large-scale inundations, where enormous volumes of water must be moved quickly and efficiently.
Thanks to its high pumping capacity, the TP 8/1 enables effective water transfer even under the most demanding operating conditio
Practical features
- Eyelet for attaching a multi-purpose line for lowering or securing the pump
- Movable cable strain relief to prevent cable tension and protect the cable entry
- Increased service life of the pump due to robust materials and design
- The pumping of contaminated water with foreign bodies such as sludge and sand is possible up to a grain size of 11 mm
Additional advantages
- Adjustable discharge pressure outlet in the horizontal and vertical position to prevent the hose from kinking
- Two ergonomic carrying handles for comfortable handling - alone or in pairs
- Easy maintenance and inspection of the pump
