QUICKCONNECT (Nozzle)
Technical data
| Product | Coupling | Flow rate at 6 bar |
| QC 180 | Storz HD 38 | 50-100-150-180 l/min |
| QC 235 | Storz C | 80-130-180-235 l/min |
| QC 400 | Storz C | 100-200-300-400 l/min |
| QC 400 | Storz B | 100-200-300-400 l/min |
| QC 500 | Storz B | 100-250-350-500 l/min |

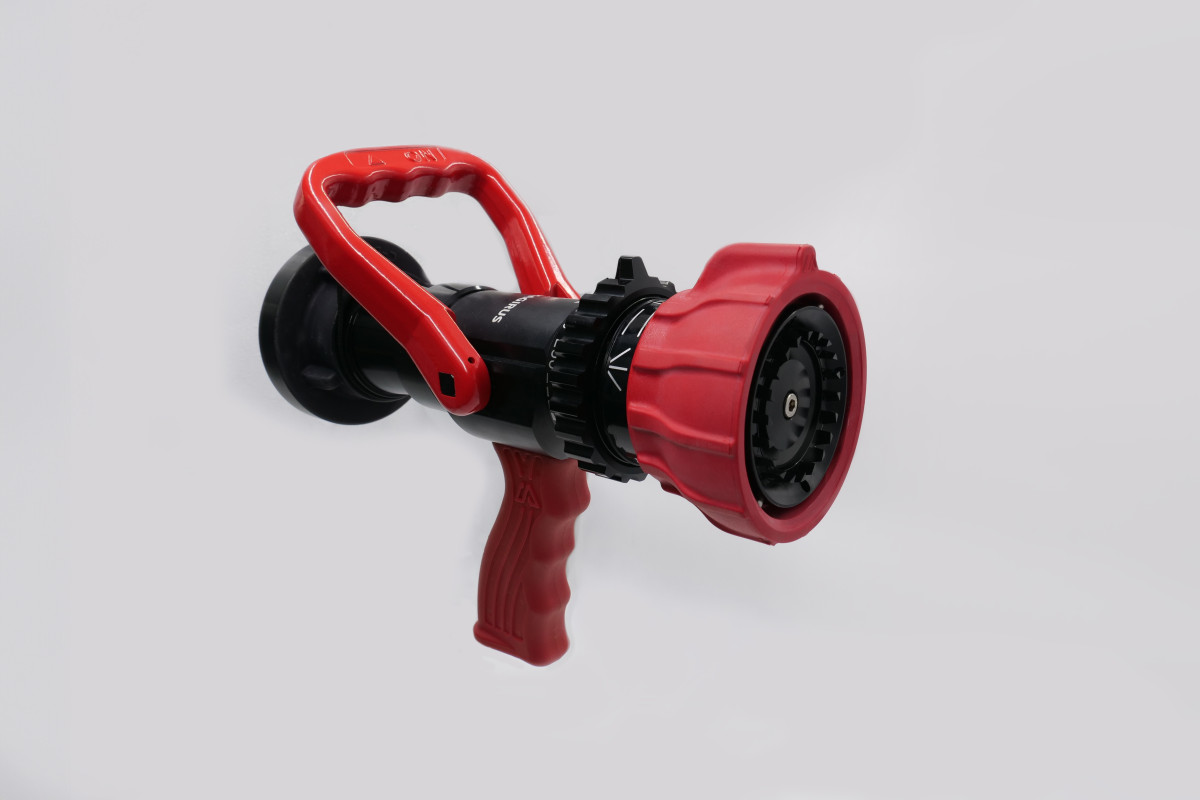

The Magirus QC (QuickConnect) series enables quick and uncomplicated use of various attachments, e.g. for heavy foam, extinguishing lance and many more, without having to remove the nozzle. This innovative technology increases the safety of the user, especially during interior attacks, as water can be discharged via the nozzle at any time. This also effectively prevents the attachments from being lost under zero visibility. The Magirus QC series stands for maximum flexibility and safety in use, making it the perfect choice for professional users.
With variable flow rates ranging from 180 to 500 l/min, the EN 15182-2-compliant QC series offers precise control of the water flow to meet the requirements of different application scenarios to meet the requirements of different application scenarios.
Practical features
- The spray form can be adjusted from full jet to spray jet to spray jet with man guard effect

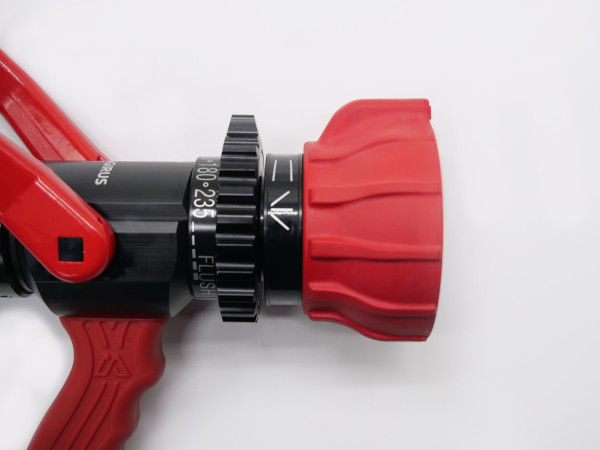

- All adjustable spray forms are fixed by means of locking points and the flow rates can be adjusted in four grid positions via the rotating ring
- The “Flush” rinsing position for rinsing out dirt particles is also possible during use
- The ball valve in the switching unit is made of chrome-plated brass
- Other couplings are available on request
Optionally available

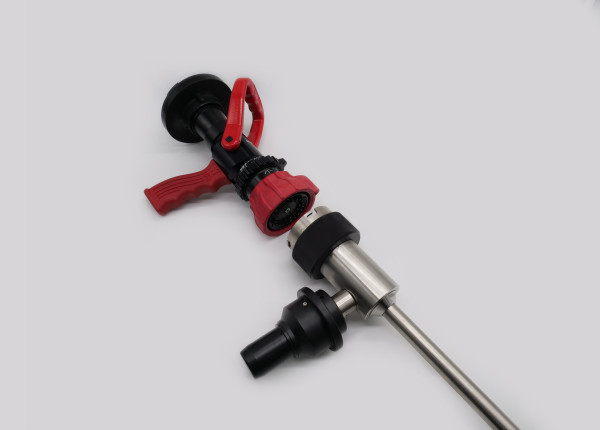

- Extinguishing lance
- Heavy foam adapter
